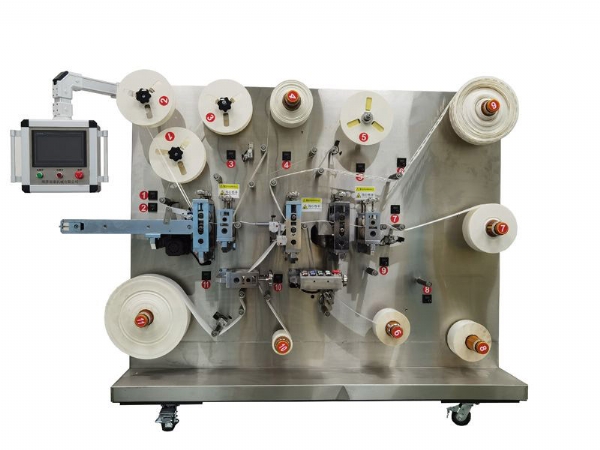

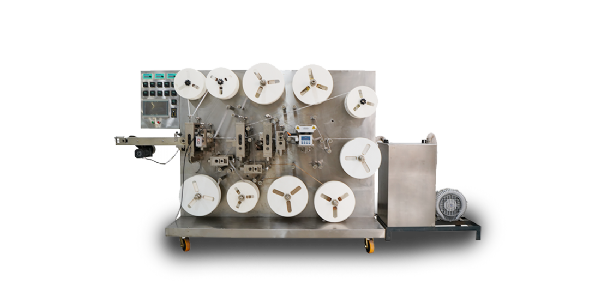

本機是一款高速加圈空貼生產線，為解決目前市場生產采用人工貼片，生產 效率低，產品合格率低等問題。結合我司現有技術進行獨立研發，設備運行 穩定，電腦全程監測?？梢m用于三伏貼、三九貼、肚臍貼、腹瀉貼、頸椎

貼、穴位貼的生產。

This machine is a high - speed add circle patch production line. In order to solve the current market production, the use of artificial patch manually,low  production  efficiency,  low  product  qualification  rate  and  other  problems. combined   with   our   existing   technology,   independent   research   and  development, The equipment  runs stably and the computer  monitors the whole process. Can be applied to medical patch production.

(1)各原料放卷裝置以及各廢料收集裝置采用磁粉張力系統控制

Each  material  unwinding  device  and  each  waste  collection  device  are controlled by magnetic powder tension system.

(2)各送料、切片工位運用國內外知名品牌運動控制系統，進行電氣軟件編

程，設備運行中自動調整相位，觸摸屏可視化操作。

Each teeding section and cutting section uses the motion control system of well-known brands at home and abroad, Electrical software programming, Automatic phase adjustment during operation.Touch screen visualization.

(3)模具采用高速鋼加工，壽命長、更換模具方便，輸入對應參數即可生產  High - speed steel mold processing, long life, easy to replace the die, input the corresponding parameters can be produced.

(4)設備生產效率高，速度可達0-200片/分鐘。操作只需1人即可完成

The production efficiency of the equipment is high, and the speed can reach 0-200pieces/min, The operation only needs 1 person.

(5)設備配有缺料自動停機以及工位異常報警功能

The equipment is equipped with the function of automatic stop of missing materials and abnormal alarm of working position.

(6)設備具有產品產量計數以及成品計數輸送功能

The  equipment  has  the  function  of counting  the  output  of  products  and

counting the delivery of finished products.

(7)詳細參數配置Main Technical Parameters:
